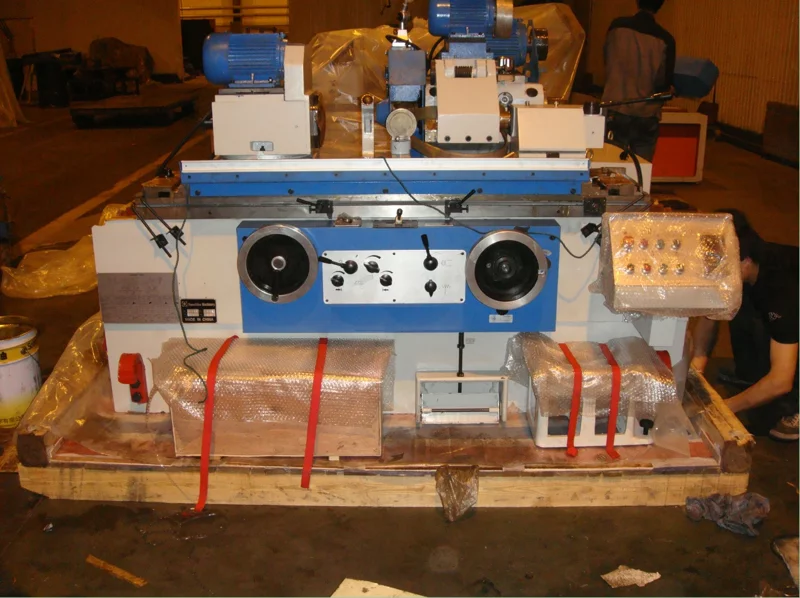

Cylindrical Grinding Machine

Features of CG and UCG Series Cylindrical Surface Grinders

Grinding Capabilities

• CG Series:
• Suitable for grinding the outer surface of cylinders and tapers.
• UCG Series:
• Suitable for grinding both outer and inner surfaces of cylinders and tapers.

Worktable Movement

• Longitudinal Movement:
• Driven by hydraulic system or handwheel.
• Capable of certain degrees of movement for grinding tapers.

Wheelhead Cross Feed

• Hydraulic Drive:
• Realizes automatic periodical feed and rapid feed.
• Offers rough and fine feed through handwheel control.

Guide Way and Spindle

• Hydrostatic Lubrication:
• Used in worktable and wheelhead guide ways of the CG50 and UCG50 series for smooth low-speed movement.
• High Rigidity Bearings:
• Spindle supported by hydrostatic and hydrodynamic bearings for high rotary accuracy and rigidity.

Wheelhead Motor and Speed Control

• CG50 Series:
• Adopts a double-speed motor with speed change via belt position adjustment.
• UCG50 Series:
• Features an inverter motor for stepless speed changing.
• Spindle adopts a sliding bearing structure.

Workhead and Grinding Options

• Workhead Rotation:
• The workhead of the universal type (UCG50) can rotate within 90° counterclockwise for inner or outer taper grinding.
• Internal Grinding Apparatus:
• Supported by precise roll bearings.
• Driven by separate motors for various spindles and pumps.

Design and Operation

• Interlock Structure:
• Electric, hydraulic, and mechanical interlock structure for moving parts.
• Control Panel:
• All control levers are centralized on the panel for easy operation.
• Wheel Dresser:
• Can be assembled on the worktable surface or on the tailstock.
