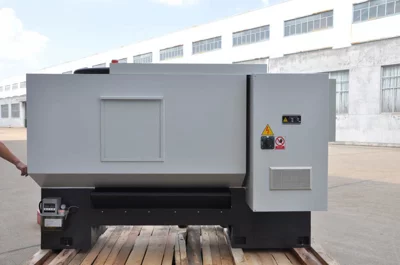

Flatbed Type CNC Lathe CK6130-6136-6140
Models List
-
CK6130
-
CK6136
-
CK6140
Description
Features
This machine is a CNC lathe controlled by a microcomputer and driven by servo motors. It is suitable for turning cylindrical and taper faces, boring, grooving, and cutting threads (including taper threads).
CNC Lathe Control:
- Microcomputer Controlled:
- Driven by servo motors.
- ISO International Code:
- Adopts ISO International Code.
- Keyboard Manual Data Input:
- Features keyboard manual data input.
- Power Cut-Off Protection:
- Equipped with a program for power cut-off protection.
- Automatic Diagnosis:
- Provides automatic diagnosis functions.
- RS232 Interface:
- Comes with an RS232 interface for connectivity.
Precision Feed:
- Ball Leadscrews:
- Longitudinal and cross feeds are effected by ball leadscrews driven by servo motors.
Tool Post Options:
- Tool Post Options:
- Choose from vertical or horizontal 4-station or 6-station tool posts or gang tools.
- The post is located on precision contrate gears with high repeated positioning accuracy.
Chuck and Tailstock Options:
- Chucks:
- Hydraulic chuck and manual chuck available.
- Tailstocks:
- Manual tailstock and hydraulic tailstock options available.
Spindle Speed:
- Variable Speed:
- Infinitely variable speed change for the spindle.
Product Specification
| Item | CK6130 | CK6136 | CK6140 |
|---|---|---|---|
| Max. Cutting Dia. for Disc Parts mm | Ø300 | Ø360 | Ø400 |
| Max. Cutting Dia. for Axle Parts mm | Ø135/Ø100 (Gang Tools) | Ø180/Ø100 (Gang Tools) | Ø225/Ø195 (Gang Tools) |
| Max. Workpiece Length mm | 500 | 500/750/1000 | 500/750/1000 |
| Max. Turning Length mm | 390 | 450/700/950 | 450/700/950 |
| 6-way Turret Max. Turning Length mm | 280 | 340/590/840 | 340/590/840 |
| 6-way Turret Max. Turning Diameter mm | Ø185 | Ø255 | Ø300 |
| Spindle Nose | D4 or A₂-5 | C5 | C6 |
| Spindle Bore mm | Ø38 or Ø43 | Ø40 | Ø52 |
| Taper of Spindle Hole | MT.No.5 or 40° Taper | MT.No.5 | MT.No.6 |
| Steps of Spindle Speed | Stepless | Stepless | Stepless |
| Range of Spindle Speed rpm | 200-3500 | 200-2800 | 200-2800 |
| Rapid Feed for Axis Z m/min | 10 | 10 | 10 |
| Rapid Feed for Axis X m/min | 8 | 8 | 8 |
| Max. Travel of Axis Z mm | 460 (18”) | 490/740/990 | 490/740/990 |
| Max. Travel of Axis X mm | 165/260 (Gang Tools) | 215/295 (Gang Tools) | 235/295 (Gang Tools) |
| Turret | |||
| Tool Cross Section mm² | 16×16 | 20×20 | 20×20 |
| External Diameter of Tailstock Sleeve mm | Ø50 | Ø60 | Ø60 |
| Taper of Tailstock Sleeve | MT.No.3 | MT.No.4 | MT.No.4 |
| Max. Travel of Tailstock Sleeve mm | 130 | 120 | 120 |
| Min. Input mm | 0.001 | 0.001 | 0.001 |
| Power of Main Motor kW | 3 | 3.7 | 3.7 (Optional 5.5) |
| Power of Cooling Pump W | 120 | 120 | 120 |
| Overall Dimensions (L×W×H) mm | 1500×945×1380 | (1870/2120/2370)×1200×1415 | (1870/2120/2370)×1200×1415 |
| Net Weight kg | 1100 | 1500/1700/1900 | 1600/1800/2000 |
