Conventional Engine Lathe Machine
Models List
-
GH1440-K
Description
Features
- The guide ways and all gears in the head stock are hardened are precision ground.
- Longitudinal feed: 0.043-0.653mm/r
- Cross feed:0.024-0.359mm/r,
- Spindle bore: Ф40mm ,40-1800rpm.
Configuration
- Workholding:3-jaw chuckФ160mm and 4-jaw chuckФ200mm, MT-5spindle nose.
- Turret:4-station tool post
- Manual Tailstock, MT.3 manual quill
- Manual Steady rest and follow rest; manual positioning and gripper adjustment;
- Face plate Ф300mm
- 12-month limited warranty covering defects in material and workmanship. An additional 1-year extended.

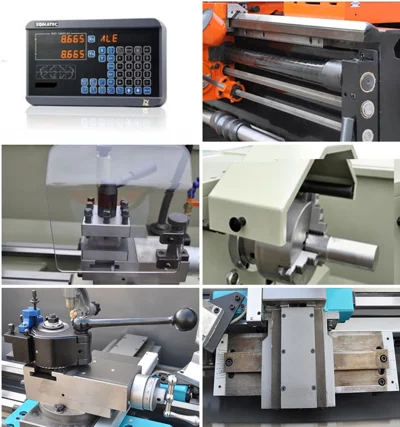

Options
- DRO 2-Axis or 3-Axis is optional
- Leadscrew cover is optional
- Turret cover is optional
- Chuck cover is optional
- Quickly change tools post
- Taper attachment is optional
Product Specification
| Item | GH1440-K |
|---|---|
| Max Swing Over Bed mm (inch) | Ф356 (14") |
| Max Swing Over Carriage mm (inch) | Ф210 (8-1/5") |
| Max Swing Over Gap mm (inch) | Ф508 (20") |
| Width of Bed mm (inch) | 260 (10-1/5") |
| Distance Between Centers mm (inch) | 1000 (40") |
| Spindle Bore mm (inch) | Ф40 (1-1/2") |
| Taper Bore of Spindle MT | M.T.NO.5 |
| Steps of Spindle Speed | 12 |
| Range of Spindle Speed rpm | 40~1800 |
| Spindle Nose | D4 |
| Range of Longitudinal Feeds mm (inch) | 0.043-0.653 (0.0012″~0.0294″) |
| Range of Cross Feeds mm (inch) | 0.024-0.359 (0.0004″~0.0103″) |
| Metric Threads mm | 0.4-7 / 37 kinds |
| Whitworth Threads TPI | 4-56 / 28 kinds |
| Diameter of Leadscrew mm (inch) | Ф22 (7/8") |
| Pitch Threads of Leadscrew | 4mm or 8TPI |
| Travel of Tailstock Quill mm (inch) | 120 (4-3/4") |
| Diameter of Tailstock Quill mm (inch) | Ф45 (1-25/32") |
| Taper Bore of Tailstock Quill | M.T.NO.3 |
| Power of Main Motor | 2.4 kW (3 HP) |
| Coolant Pump Motor Power | 0.04 kW (0.055 HP) |
| Dimension (L×W×H) mm | 1900×710×1170 |
| Net Weight | 1250 kg (2750 lbs) |
| Gross Weight | 1380 kg (3040 lbs) |
