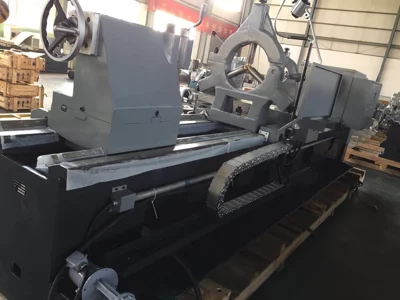

Conventional Heavy Duty Lathe Machine

❮ ❯

Models List

Contact now

Description

Workholding:3-jaw chuckФ325mm and 4-jaw chuckФ500mm ,D11 spindle nose.
Turret:4-station tool post
Manual Tailstock, MT.5 manual quill
Manual Steady rest and follow rest; manual positioning and gripper adjustment;
Face plate Ф800mm
12-month limited warranty covering defects in material and workmanship. An additional 1-year extended.

Product Specification

Item	CW6291B	CW62100B	CW62110B
Models	CW62110B	CW62100B	CW6291B
Max Swing Over Bed mm	1100	1000	910
Max Swing Over Carriage mm	680	580	580
Max Swing Over Gap mm	1300	1200	1100
Effective Length of Gap mm	400	400	400
Width of Bed mm	600	600	600
Max Weight of Workpiece kg	2000	2000	2000
Spindle Nose	D11	D11	D11
Spindle Bore mm	105	105	105
Taper Bore of Spindle	Metric Φ120 1:20	Metric Φ120 1:20	Metric Φ120 1:20
Steps of Spindle Speed	18	18	18
Range of Spindle Speed rpm	5~645	5~645	5~720
Number of Longitudinal Feeds	64	64	64
Range of Longitudinal Feeds (1:1) mm/r	0.1~1.52	0.1~1.52	0.1~1.52
Range of Longitudinal Feeds (16:1) mm/r	1.6~24.3	1.6~24.3	1.6~24.3
Number of Cross Feeds	64	64	64
Longitudinal mm/min	4000	4000	4000
Cross mm/min	2000	2000	2000
Metric Pitch Threads mm/50	1~240	1~240	1~240
Whitworth Threads TPI/26	14~1	14~1	14~1
Module Threads M.P./53	0.5~120	0.5~120	0.5~120
D.P. Threads D.P./24	28~1	28~1	28~1
Taper Bore	M.T. NO.5	M.T. NO.5	M.T. NO.5
Max Travel mm	250	250	250
External Diameter mm	100	100	100
Vertical Distance from Spindle Center to Installing Basis mm	33	33	33
Max Travel of Compound Rest mm	200	200	200
Swing Angle of Tool Post degrees	±90	±90	±90
Max Travel of Cross Slide mm	620	570	500
Size of Tool Shank mm	32×32	32×32	32×32
Main Motor Power kW	11	11	11
Rapid Feed Motor Power kW	1.1	1.1	1.1
Coolant Pump Power W	90	90	90
3m Machine Overall Dimension mm	5155x1450x1685	5155x1450x1685	5155x1450x1685
3m Machine Net Weight kg	7550	7550	7550
